Перемикач Systemair AES-UD-BA operating switch
Модель: AES-UD-BA
Артикул: 35719
Operating switch for Overload Pressure Contol Unit from plastic. З захистом glass.
U = 24V DC.
With following switch positions:
- Max. overl.
- OFF
- Ready
- Auto overl.
Перемикач Systemair AES3.2-0,75kW, D3M, control un
Модель: AES3.2-0,75kW,
Артикул: 77049
Exhaust air and smoke extraction switchgear with direct-starting
All functions in accordance with VDMA 24177 / DIN / VDE 0660
Four independent detector loops for fireman´s switch, external fire detection system, smoke detectors and push-button alarm
Execution of the loop detectors with monitoring for wire-break and short-circuit
20 smoke detectors per detector loop
Adjustable 0-10V analog output for control of appropriate frequency and EC fans
Internal low voltage power supply with power reserves for example, for connection of external acoustic or optical detector.
Prepared for connection and control over our bus coupler to a Modbus bus system
Exhaust air and smoke extraction switchgear with direct starting, for one fan with 3-phase-motor. Up to 22 kW the housing consists of plastic, from 30 kW the housing consists of sheet.
Motor protection current-range (Standard):
Power Current-range
0,25 - 0,37 kW 0,6A – 1,0A
0,55 kW 1,0A – 1,6A
0,75 kW 1,6A – 2,4A
1,1 - 1,5 kW 2,4A – 4,0A
2,2 - 3,0 kW 4,0A – 6,0A
4,0 kW 6,0A – 9,0A
(When it is an other current-range needed, it has to be noted explicitly)
Note:
D2M = for 2 Motors
D3M = for 3 Motors
D4M = for 4 Motors
Перемикач Systemair AES3.2-1,5kW, D3M, control uni
Модель: AES3.2-1,5kW,
Артикул: 77057
Exhaust air and smoke extraction switchgear with direct-starting
All functions in accordance with VDMA 24177 / DIN / VDE 0660
Four independent detector loops for fireman´s switch, external fire detection system, smoke detectors and push-button alarm
Execution of the loop detectors with monitoring for wire-break and short-circuit
20 smoke detectors per detector loop
Adjustable 0-10V analog output for control of appropriate frequency and EC fans
Internal low voltage power supply with power reserves for example, for connection of external acoustic or optical detector.
Prepared for connection and control over our bus coupler to a Modbus bus system
Exhaust air and smoke extraction switchgear with direct starting, for one fan with 3-phase-motor. Up to 22 kW the housing consists of plastic, from 30 kW the housing consists of sheet.
Motor protection current-range (Standard):
Power Current-range
0,25 - 0,37 kW 0,6A – 1,0A
0,55 kW 1,0A – 1,6A
0,75 kW 1,6A – 2,4A
1,1 - 1,5 kW 2,4A – 4,0A
2,2 - 3,0 kW 4,0A – 6,0A
4,0 kW 6,0A – 9,0A
(When it is an other current-range needed, it has to be noted explicitly)
Note:
D2M = for 2 Motors
D3M = for 3 Motors
D4M = for 4 Motors
Перемикач Systemair AES3.2-3kW, D4M, control unit
Модель: AES3.2-3kW,
Артикул: 77089
Exhaust air and smoke extraction switchgear with direct-starting
All functions in accordance with VDMA 24177 / DIN / VDE 0660
Four independent detector loops for fireman´s switch, external fire detection system, smoke detectors and push-button alarm
Execution of the loop detectors with monitoring for wire-break and short-circuit
20 smoke detectors per detector loop
Adjustable 0-10V analog output for control of appropriate frequency and EC fans
Internal low voltage power supply with power reserves for example, for connection of external acoustic or optical detector.
Prepared for connection and control over our bus coupler to a Modbus bus system
Exhaust air and smoke extraction switchgear with direct starting, for one fan with 3-phase-motor. Up to 22 kW the housing consists of plastic, from 30 kW the housing consists of sheet.
Motor protection current-range (Standard):
Power Current-range
0,25 - 0,37 kW 0,6A – 1,0A
0,55 kW 1,0A – 1,6A
0,75 kW 1,6A – 2,4A
1,1 - 1,5 kW 2,4A – 4,0A
2,2 - 3,0 kW 4,0A – 6,0A
4,0 kW 6,0A – 9,0A
(When it is an other current-range needed, it has to be noted explicitly)
Note:
D2M = for 2 Motors
D3M = for 3 Motors
D4M = for 4 Motors
Перемикач Systemair AES3.2-4kW, D3M, control unit
Модель: AES3.2-4kW,
Артикул: 77093
Exhaust air and smoke extraction switchgear with direct-starting
All functions in accordance with VDMA 24177 / DIN / VDE 0660
Four independent detector loops for fireman´s switch, external fire detection system, smoke detectors and push-button alarm
Execution of the loop detectors with monitoring for wire-break and short-circuit
20 smoke detectors per detector loop
Adjustable 0-10V analog output for control of appropriate frequency and EC fans
Internal low voltage power supply with power reserves for example, for connection of external acoustic or optical detector.
Prepared for connection and control over our bus coupler to a Modbus bus system
Exhaust air and smoke extraction switchgear with direct starting, for one fan with 3-phase-motor. Up to 22 kW the housing consists of plastic, from 30 kW the housing consists of sheet.
Motor protection current-range (Standard):
Power Current-range
0,25 - 0,37 kW 0,6A – 1,0A
0,55 kW 1,0A – 1,6A
0,75 kW 1,6A – 2,4A
1,1 - 1,5 kW 2,4A – 4,0A
2,2 - 3,0 kW 4,0A – 6,0A
4,0 kW 6,0A – 9,0A
(When it is an other current-range needed, it has to be noted explicitly)
Note:
D2M = for 2 Motors
D3M = for 3 Motors
D4M = for 4 Motors
Перемикач Systemair AES3.2-4kW, D4M, control unit
Модель: AES3.2-4kW,
Артикул: 77094
Exhaust air and smoke extraction switchgear with direct-starting
All functions in accordance with VDMA 24177 / DIN / VDE 0660
Four independent detector loops for fireman´s switch, external fire detection system, smoke detectors and push-button alarm
Execution of the loop detectors with monitoring for wire-break and short-circuit
20 smoke detectors per detector loop
Adjustable 0-10V analog output for control of appropriate frequency and EC fans
Internal low voltage power supply with power reserves for example, for connection of external acoustic or optical detector.
Prepared for connection and control over our bus coupler to a Modbus bus system
Exhaust air and smoke extraction switchgear with direct starting, for one fan with 3-phase-motor. Up to 22 kW the housing consists of plastic, from 30 kW the housing consists of sheet.
Motor protection current-range (Standard):
Power Current-range
0,25 - 0,37 kW 0,6A – 1,0A
0,55 kW 1,0A – 1,6A
0,75 kW 1,6A – 2,4A
1,1 - 1,5 kW 2,4A – 4,0A
2,2 - 3,0 kW 4,0A – 6,0A
4,0 kW 6,0A – 9,0A
(When it is an other current-range needed, it has to be noted explicitly)
Note:
D2M = for 2 Motors
D3M = for 3 Motors
D4M = for 4 Motors
Перемикач Systemair AMM-2 multiple sensor detector
Модель: AMM-2
Артикул: 35711
Smoke detector (optical and thermal) with socket for connection with AES-ST3.1. With VdS-Approval and According to DIN-EN 54-7. High operating safety due to intelligent analysis of the optical and thermal signal. Material ABS, Color: white, IP40.

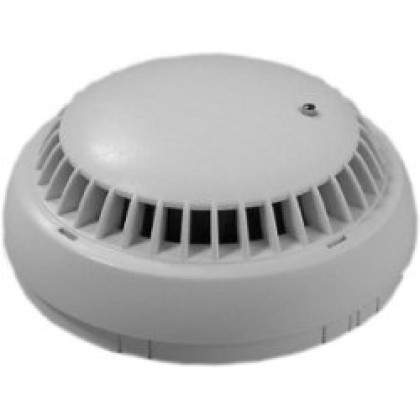

Перемикач Systemair ARM-1 smoke detector
Модель: ARM-1
Артикул: 35710
Smoke detector with socket for connection with AES-ST3.1. With VdS-Approval and According to DIN-EN 54-7. High operating safety due to intelligent analysis of the optical signal. Material ABS, Color: white, IP40.

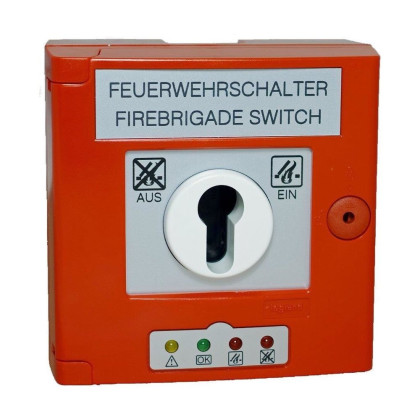

Перемикач Systemair FWS-P4 fire brigade switch
Модель: FWS-P4
Артикул: 77153
Fire brigade switch for switching by a key switch
Key switch (FWS-ZY / item no.: 77157) not contained
Enclosure class IP44
B/H/D 125/125/70mm
Color: red
Nominal voltage: 24V DC
Fire brigade switch in a wall mounting housing. Switch positions: ready/smoke extraction/off.

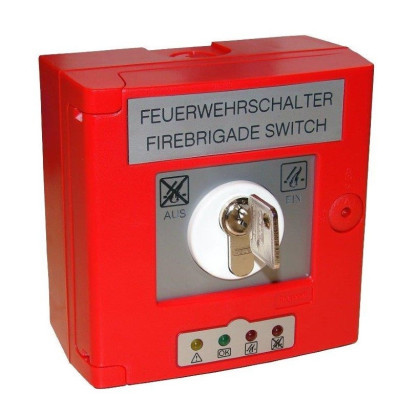

Перемикач Systemair FWS-P4 fire brigade switch+key
Модель: FWS-P4
Артикул: 77158
Fire brigade switch for switching by a key switch
Incl. profile cylinder and key switch (FWS-ZY / item no.: 77157)
Enclosure class IP44
B/H/D 125/125/70mm
Color: red
Nominal voltage: 24V DC
Fire brigade switch in a wall mounting housing. Switch positions: ready/smoke extraction/off.

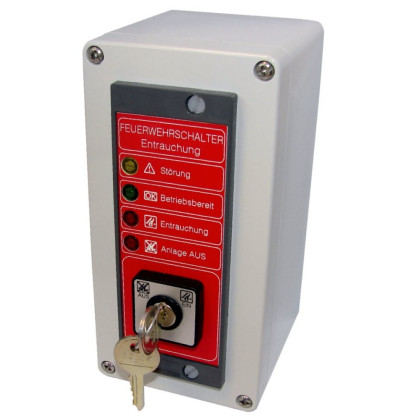

Перемикач Systemair FWS-S4 fire brigade switch
Модель: FWS-S4
Артикул: 77152
Fire brigade switch smoke extraction with key switch
Enclosure class IP44
B/H/D 80/160/80mm
Color: grey / red
Nominal voltage: 24V DC
Fire brigade switch for smoke extraction with standard key switch in wall mounting housing. With key switch off/smoke extraction/ready.
Перемикач Systemair FWS-ZY profile cylinder
Модель: FWS-ZY
Артикул: 77157
FWS-ZY profile cylinder for fire brigade switch smoke extraction (FWS-P4 fire brigade switch / item no. 77153) with two keys.
Cylinder length: 30mm
Перемикач Systemair HRM-3K-GE pushbutton switch
Модель: HRM-3K-GE
Артикул: 77155
Application
The smoke vent button HRM-3 is used as a Manual detector in smoke and heat vent systems. It is used in case of fire the manual release on the electrical control system for activating the automatic flue. The smoke vent button is carried out in conventional detectors technology and is monitored for open and short circuit. The system status "Ready", "tripped" and "disorder" are each indicated by a separate LED indicator light on the smoke vent button.
The smoke vent button made of a flat metal or plastic enclosure with door, a lock and interchangeable wrapping sheet of glass which protects against accidental operation. In case of alarm, the glass pane is taken for detection triggered.
The HRM-3 has a pressure switch for triggering an alarm, and a print button for resetting, which is concealed and is only accessible with the door detector housing. The provision of unit triggering can take place at any detector.
Alarm reset auto. Detector (ARM / MAN) RESET - button: If an alarm is triggered by automatic detectors at the control unit AES ST3.2, this on the RESET can - the manual smoke vent button HRM-3 are reset. For this, the key is to hold for at least 1 second.
Technical data
Mains voltage: 24V DC
Signal current per LED: 7mA
Version switch contact type groping, even retreat
Alarm current - loop: 20mA
Quiescent current - loop: 2mA
Loop-end resistance: 10k Ohm
Contact rating Kl. 6/8: 200mA
Terminals: 1mm²
Signal conductor: type solid, 4x2x0,8mm
Ambient temperature: -5 to +65°C
Protection class: IP42
Marking: CE
Case: plastic metal
Color of Case: RAL 7035 grey RAL 1018 yellow RAL 2011 orange
Dimensions of case (w/h/d) mm 125/125/37
Weight: 0,2kg
Перемикач Systemair HRM-3K-GR pushbutton switch
Модель: HRM-3K-GR
Артикул: 77154
Application
The smoke vent button HRM-3 is used as a Manual detector in smoke and heat vent systems. It is used in case of fire the manual release on the electrical control system for activating the automatic flue. The smoke vent button is carried out in conventional detectors technology and is monitored for open and short circuit. The system status "Ready", "tripped" and "disorder" are each indicated by a separate LED indicator light on the smoke vent button.
The smoke vent button made of a flat metal or plastic enclosure with door, a lock and interchangeable wrapping sheet of glass which protects against accidental operation. In case of alarm, the glass pane is taken for detection triggered.
The HRM-3 has a pressure switch for triggering an alarm, and a print button for resetting, which is concealed and is only accessible with the door detector housing. The provision of unit triggering can take place at any detector.
Alarm reset auto. Detector (ARM / MAN) RESET - button: If an alarm is triggered by automatic detectors at the control unit AES ST3.2, this on the RESET can - the manual smoke vent button HRM-3 are reset. For this, the key is to hold for at least 1 second.
Technical data
Mains voltage: 24V DC
Signal current per LED: 7mA
Version switch contact type groping, even retreat
Alarm current - loop: 20mA
Quiescent current - loop: 2mA
Loop-end resistance: 10k Ohm
Contact rating Kl. 6/8: 200mA
Terminals: 1mm²
Signal conductor: type solid, 4x2x0,8mm
Ambient temperature: -5 to +65°C
Protection class: IP42
Marking: CE
Case: plastic metal
Color of Case: RAL 7035 grey RAL 1018 yellow RAL 2011 orange
Dimensions of case (w/h/d) mm 125/125/37
Weight: 0,2kg
Перемикач Systemair HRM-3K-OR pushbutton switch
Модель: HRM-3K-OR
Артикул: 77156
Application
The smoke vent button HRM-3 is used as a Manual detector in smoke and heat vent systems. It is used in case of fire the manual release on the electrical control system for activating the automatic flue. The smoke vent button is carried out in conventional detectors technology and is monitored for open and short circuit. The system status "Ready", "tripped" and "disorder" are each indicated by a separate LED indicator light on the smoke vent button.
The smoke vent button made of a flat metal or plastic enclosure with door, a lock and interchangeable wrapping sheet of glass which protects against accidental operation. In case of alarm, the glass pane is taken for detection triggered.
The HRM-3 has a pressure switch for triggering an alarm, and a print button for resetting, which is concealed and is only accessible with the door detector housing. The provision of unit triggering can take place at any detector.
Alarm reset auto. Detector (ARM / MAN) RESET - button: If an alarm is triggered by automatic detectors at the control unit AES ST3.2, this on the RESET can - the manual smoke vent button HRM-3 are reset. For this, the key is to hold for at least 1 second.
Technical data
Mains voltage: 24V DC
Signal current per LED: 7mA
Version switch contact type groping, even retreat
Alarm current - loop: 20mA
Quiescent current - loop: 2mA
Loop-end resistance: 10k Ohm
Contact rating Kl. 6/8: 200mA
Terminals: 1mm²
Signal conductor: type solid, 4x2x0,8mm
Ambient temperature: -5 to +65°C
Protection class: IP42
Marking: CE
Case: plastic metal
Color of Case: RAL 7035 grey RAL 1018 yellow RAL 2011 orange
Dimensions of case (w/h/d) mm 125/125/37
Weight: 0,2kg
