Systemair IV Smart EC-CO

100% speed controllable via 0-10V signal

Integrated motor protection

Casing is made from galvanised steel

Suitable for temperature up to 55°C

External terminal box for easy electronic connection

inclusive power supply divider

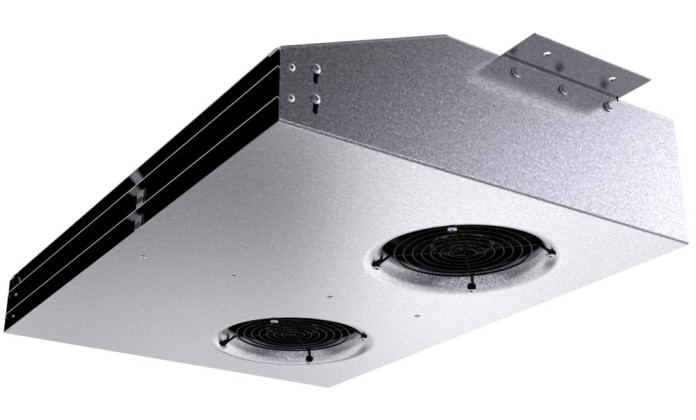

Green Ventilation Jet fan with energy-efficient EC technology for day-to-day ventilation, Co monitoring and cold smoke extraction.Green Ventilation jet fan with energy-efficient EC technology for day-to-day ventilation, CO monitoring and cold smoke extraction. For you as a HVAC planner or garage operator, the IV smart can meet whatever requirements you need. Currently the most compact jet fan on the market. You get a safe solution even for garages with low ceilings. Low weight and integrated galvanised steel ceiling mount. Can be mounted quickly, easily and safely. Available in 50/60 Hz, 230V EC motors with IP 44, as per EN 60034-5/IEC 85. Two parallel Sileo centrifugal impellers made from plastic and an aerodynamically optimized outlet.
