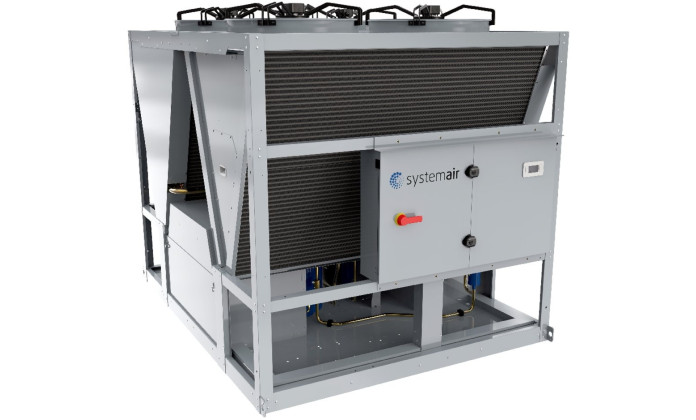

Systemair SYSAQUA150.H.1P-SP.WPS.AVM.T

SysAquaL/SysAquaH 140 to 210 have been designed and optimized to operate with R410A refrigerant fluid.

They are available in cooling only (SysAquaL) and heat pump (SysAquaH) versions.

Each versions consists of 5 sizes (140, 150, 170, 190 and 210) and covers a nominal cooling capacity range from 127 to 208 kW and a nominal heating capacity range from 140 to 213kW

All units are equipped with four scroll compressors fitted in tandem for adapting to partial system loads.

The general operation status of the machine is continuously under the control of an IHM controller

The SysAquaL and SysAquaH units can operate without water tank, thanks to the IHM controller that implements an auto- adaptative control logic ensuring a total protection of the compressors at different load or water volume conditions.

The minimum water volume requested in cooling mode is 3.5 litres of buffer volume per kW.

In heating mode, 6.5 litres of buffer volume per kW are recommended in order to guarantee homogeneous temperatures during the defrosting cycles (comfort and energy savings).

A fans peed controller can be also supplied as factory-fitted option to authorize the unit to operate in cooling mode at low ambient temperature.
