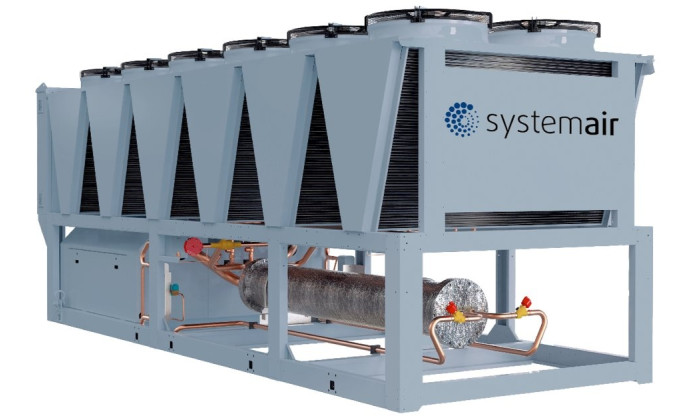

Systemair SYSCREW 1070 Air CO

Technical feature

• 21 sizes
• Cooling capacity from 295 to 1395 [kW]
• 3 fans versions: STD (Standard), HT (High Temperature), HPF (High Pressure Fans)
• Acoustic versions: STD (Standard), S (Super Low Noise)
• Two refrigerant circuits
• 2 screw compressors
• Coated microchannel coils

Standard features

• Phase sequence control
• Electronic expansion valve
• Control circuit transformer
• Control data logger
• Antifreeze electrical heater
• Modbus protocol kit for BMS
• E-coating for Microchannel and Al/Cu coils

Factory installed options

• Lonwork protocol kit for BMS
• Bacnet protocol kit for BMS
• Compressors soft-starter
• Fan speed control for low ambient operation
• Double set-point
• Power factor correction capacitors
• Automatic circuit breaker
• HP & LP gauges
• Compressor suction valves
• Compressor oil level switch
• Compressor stepless control
• Condenser coils with copper fins
• Finned tubes coils
• Chiller grilles
• Compressor acoustic box
• Desuperheater
• Total heat recovery (TR)
• On board hydro kits 1P/2P without tank

Field installed accessories

• Remote ON/OFF control
• Remote keyboard panel
• Sequencer, up to max four units
• Anti-vibration spring
• Water flow switch
• Water pressure switch
• Water filter
• Remote hydro kits with 2500 [l] buffer tank, 1 or 2 low or high pressure pump(s), relevant accessories and with or without antifreeze heater
