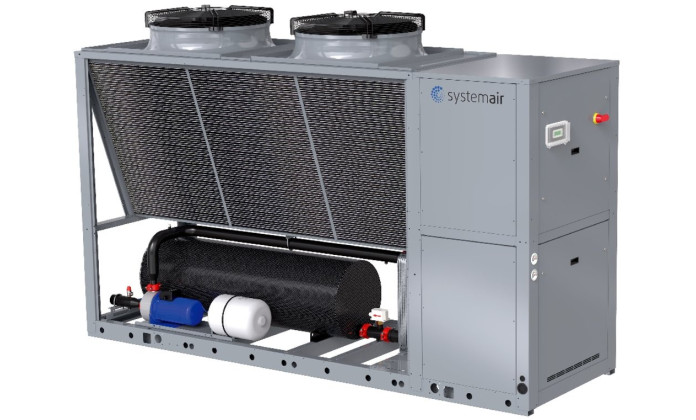

Systemair SYSCROLL 120 Air RE

Technical features

• 5 sizes
• Cooling capacity from 94 to 142 [kW]
• Fans versions: STD (Standard), HT (High Temperature), HPF (High Pressure Fans)
• Acoustic versions: - (Basic Low Noise), S (Super Low Noise
• Single refrigerant circuit
• Two Scroll compressors (fixed speed) in tandem application
• Microchannel coils
• Axial fan motor
• User-friendly microprocessor based control
• Power supply 400 [V] / 3 [pH] / 50 [Hz]

Standard features

• Sequence phase control
• Control circuit transformer
• Modbus protocol kit for BMS
• Fan speed control for low ambient operation
• Rubber pad
• E-coating for Microchannel and Al/Cu coils

Factory installed options

• Lonwork protocol kit for BMS
• Bacnet protocol kit for BMS
• Compressors soft-starter
• Power factor correction capacitors
• Compressor overload protection
• Automatic circuit breaker
• HP & LP gauges
• Condenser coils with copper fins
• Coil grilles
• Chiller grilles
• Compressor jackets
• Desuperheater

Field installed accessories

• Remote ON/OFF control
• Remote keyboard panel
• Anti-vibration spring
