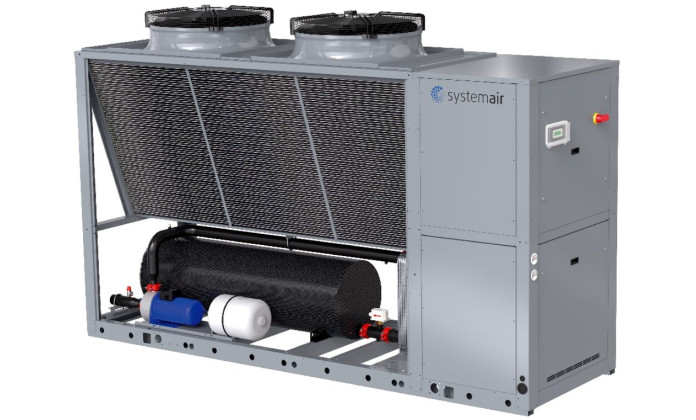

Systemair SYSCROLL 95 Air HP

Technical features

• 5 sizes
• Cooling capacity from 79 to 125 [kW]
• Heating capacity from 85 to 133 [kW]
• Fans versions: STD (Standard), HT (High Temperature), HPF (High Pressure Fans)
• Acoustic versions : - (Basic Low Noise), S (Super Low Noise)
• Single refrigerant circuit
• Two Scroll compressors (fixed speed) in tandem application
• Finned tubes coils
• Axial fan motor
• Brazed plates heat exchanger
• Electronic expansion valve
• User-friendly microprocessor based control
• Power supply 400 [V] / 3 [pH] / 50 [Hz]

Standard features

• Sequence phase control
• Control circuit transformer
• Modbus protocol kit for BMS
• Water flow switch
• Evaporator antifreeze electrical heater
• Rubber pad

Factory installed options

• Lonwork protocol kit for BMS
• Bacnet protocol kit for BMS
• Compressors soft-starter
• Fan speed control for low ambient operation
• Double set point
• Power factor correction capacitors
• Compressor overload protection
• Automatic circuit breaker
• HP & LP gauges
• E-coating for Al/Cu coils
• Blue fins treatment for Al/Cu coils
• Condenser coils with copper fins
• Coil grilles
• Chiller grilles
• Compressor jackets
• Desuperheater
• On board hydro kits 1P/2P with/without tank

Field installed accessories

• Remote ON/OFF control
• Remote keyboard panel
• Sequencer, up to max four units
• Anti-vibration spring
• Water pressure switch
• Water filter
• Remote hydro kits with buffer tank, 1 or 2 low or high pressure pump(s), relevant accessories and with or without antifreeze heater
